Area 1 (Mesin Roll - Assembling Area) OHC Existing 10t

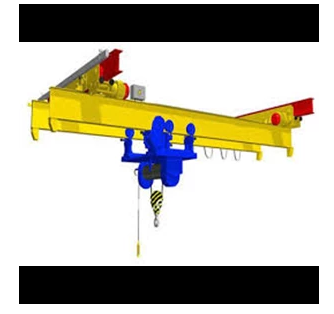

Crane Structure
End Carriage
Model : DHF-L-E 220/3000
Wheel diametre : 220 mm
Drive :2 x 1,5 kW ; 20 m/min (ex. Taiwan)
Box Structure :Material ASTM A36
Wheel base :3000 mm
Ruber Bumper :dia. 80 mm
Quantity (Set) :1
Girder
Girder capacity (kg) : 10000
Girder Span (m) : 21
Design standard (structure) : DIN 15081
Raw material structure : ASTM A36
Deflection :1 / 750
Model :Boxed Double Girder
Rail : 44*44
Walkway + safety handrail : 1 side along the gider
Bolt Joint set : HTB
Surface preparation : Manual Brush
Painting : JOTUN 120 micron
Girder Weight (kg) : 9737
Quantity (unit) : 1
Crane Electrical
Power : 3 Phase 380 V 50 Hz
Traversing Control : 21 meter Festoon system (Track S1A)
Traveling Control : 78 meter Rail conductor 3P 75A KYEC
Control Method : Push Button (Emergency + 6 Button)
Main + Traveling Panel : Contactor system + Inverter system (LS)
Hoisting + Traversing Panel : Contactor system (Schneider)
Rotary Lamp & Sirene : Standard
Safety Device : Emergency stop protection
Traversing & travelling limit switch
Rotary Lamp & Horn
Runway Crane
Material : by Existing
Runway Beam : by Existing
Konsol : by Existing
Rail : by Existing
IV. Labour
Project Management : 1 Ls
Runway & Rail Installation : 2 x 78 mtr
Erection + Installation : 1 unit OHC
Delivery equipment to site : 1 Ls
Test + commissioning : 1 unit OHC
